型號:MT-MSO9280

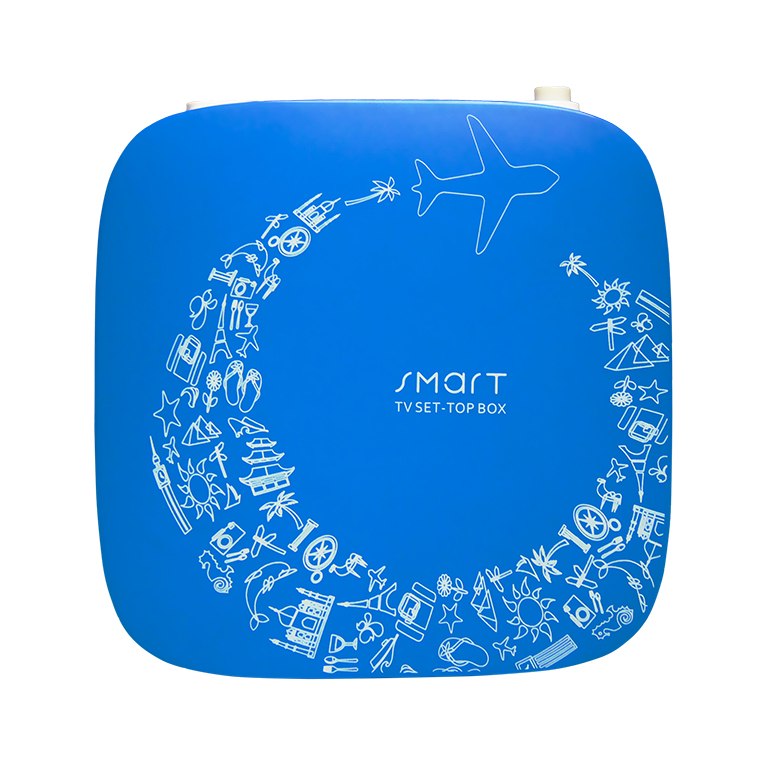

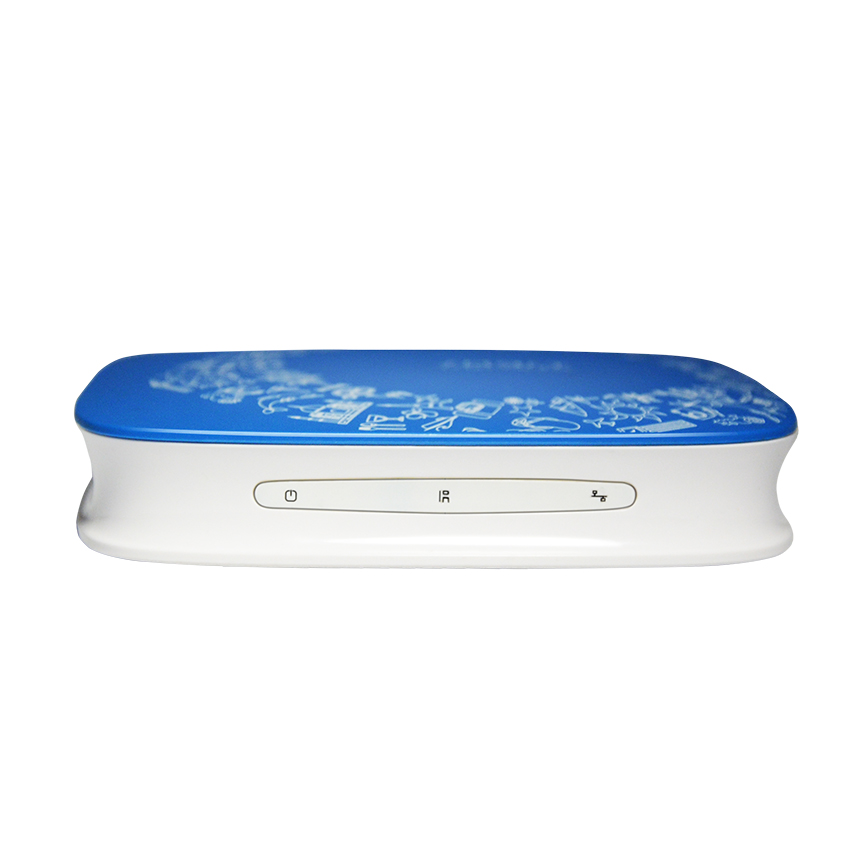

品名:MT-MSO9280 4K 高清數(shù)字機頂盒


在線詢價

1、Product description:
The MT-9280 is a high-performance wireless IP set-box,.It support all-purpose multi-media decoding,3D formatter,media-center function,and smart entertainment platform enabled by high performance CODEC engine,CPU and GPU.It has a high performance micro-processor embedded a ARM Cortex A7 quad Core CPU and a 3D Graphic GPU.The OTT Based on Android system can be directly connected by TV and audio playback device to the user.For the page information browsing, IPTV playback, Internet video and audio playback, application store, visual communication, home media sharing,Games and other interactive applications.The access side provides 1 Ethernet interface and a WiFi interface, it support IEEE 802.11b/g/n wireless and speed up to 300Mbps; the user side media interface provides 1 HDMI interface.A three in one out  AV Mini interface (1 CVBS, 1 the left and right channel interface), 1 SPDIF interface, 1 Micro
SD card interface; the user side peripheral interface provides 2 USB2.0 interface and 1 infrared remote control interface.
2、 Product features:
Support PPPoE、DHCP、LAN Multiple access methods.
Support IPV4/IPV6
Support IEEE 802.11b/g/n
Support Bluetooth and camera
Support 10/100Mbps Ethernet RJ45 port
Support  2*USB port
Support 1* CVBS
Support 1*SPDIF
Support  one  Micro SD card interface
3Product specification

Hardware Features
Protocol standards IEEE 802.11b、 IEEE 802.11g、IEEE 802.11n
IEEE 802.3、IEEE 802.3u
H.264

Display standard 1080p
bandwidth 2Mbps
Audio output 1 x HDMI 、1 x SPDIF 、1 x FIBER
Video output 1 x HDMI 、1 x CVBS/S-video
Interface 1*RJ45 FE (support auto MDI/MDIX)
1*SPDIF
1*CVBS
2*USB 2.0
1*Micro SD card
1*power jack
1*HDMI 1.4

Button One power switch button
LED Power / network/ infrared
Power DC 12V/1A
Wireless Features
Basic functions Wireless enable/disable
Channel selection:1-14
Channel Width:20MHz、40MHz
Frequency 2.412----2.4835GHz
Transmission rate IEEE 802.11b: 1, 2, 5.5,11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 150,300Mbps (typical)
RF Power 11n 14dBm±1.5dBm
11g 15dBm±1.5dBm
11b 17dBm±1.5dBm
Others
Packing Accessories Ethernet cable*1(1M/ACC)
User manual*1
Power supply
Mini AV cable
HDMI cable
Battery
Intrared Remote control

Power input DC 12V/1A
Use Environment Operating Temperature:-10℃ to  40℃
Storage temperature:-20℃ to  70℃
Work Humidity:10% to 90%RH Non-condensing
Storage Humidity:5% to 90%RH Non-condensing
